Features of TSRD-500
Specifications (TSRD-500)
- (A)Measuaring Range:
-
- ① SPH : 0.00D~19.00D (-0.25D) / +0.25D~ +16.50D(+0.25D)
- ② CYL : 0.00D~8.75D(-0.25D)
- ③ AXIS : 0˚~180˚(1˚5˚)
- ④ P.D : 48mm~80mm
- (B)Auxiliary Lenses:
-
- ① Occluder
- ② P.D check
- ③ Pinhole plate (1mm)
- ④ Polarizing : right eye 135˚, left eye 45˚
- ⑤ Red/Green Filters (right eye:red, left eye : green)
- ⑥ Maddox Rod : right eye red horizontal / vertical left eye white vertical / horizontal
- ⑦ Dissolution prism : right eye : 6△ B/U left eye : 10△ B/I
- ⑧ Fixed Cross Cylinder ±0.50D
- ⑨ Retinscope : ±1.50D
- (C)Auto Cross Cylinder Lens : ±2.50D
- (D)Rotary Prism : 0△~20△(0.5△)

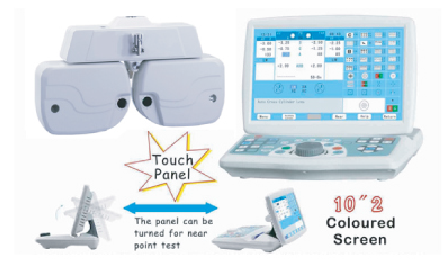

- (E)Control System : Touch panel Control
- (F)Monitor : LCD(10"2)
- (G)Dimension And Weight:
-
- ① Main Body : 110(W)X480(D)X290(H)mm keyboard:250(W)X230(D)X210(H)mm
- ② Carton : Main Body : 250(W)X530(D)X450(H)mm keyboard : 310(W)X310(D)X280(H)mm
- ③ Main Body N.W : 8.2kg, G.W : 11.7kg
- ④ Keyboard N.W : 2kg, G.W:3.0kg
- (H)Power Source : DC12V
◎A piece of auto cross cylinder lens concludes 2 pieces of dissolution prism and 2 pieces of ±2.50D cross cylinder two different charts can be seen at the same time, and then CYL power and axis are avaliable.
