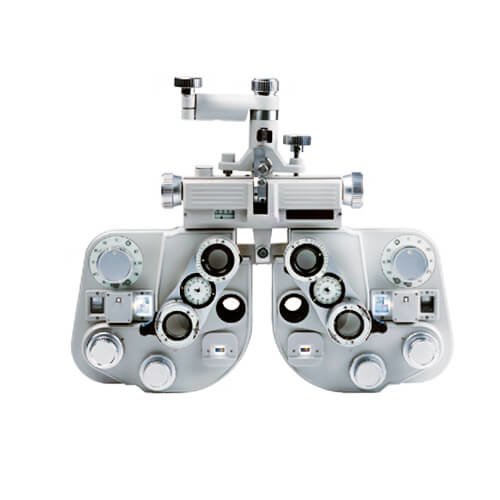

Features of TSRM-600EL
- ⑴LED illuminated reading for Sphere and Cilynder powers
- ⑵Dial plates with luminous effect, easy to see the readings in the dark
- ⑶Horizontal level is easy to observe with built-in reflector
- ⑷Power source : DC9V(3VX3 pieces of Battery)
Specifications (TSRM-600EL)
- (A)Measuaring range:
-
- ① SPH : 0.00D~19.00D (-0.25D) steps / +0.25~ +16.75D (+0.25D) steps
- ② CYL : 0.00D~6.00D (-0.25D) steps (with additional lens of -2.00D the CYL power can be up to -8.00D)
- ③ AXIS : 0˚~180˚
- ④ P.D : 50mm~78mm (in 1mm steps)
- (B)Auxiliary Lenses:
-
- ① Occluder
- ② P.D check
- ③ Pinhole plate
- ④ Polarzing : right eye 135˚, left eye 45˚
- ⑤ Red/Green filter : right eye red, left eye green
- ⑥ Moddx rod : right eye red horizontal / vertical left eye white horizontal / vertical
- ⑦ Dissolution prism : right eye : 6△ B/U left eye : 10△ B/I
- ⑧ Fixed cross cylinder lens : ±0.50D
- ⑨ Retinscope : ±1.50D
- (C)Rotary cross cylinder lens : ±0.25D
- (D)Rotary Prism : 0△~20△(1△steps)
- (E)Dimention & Weight
-
- ① Main Body : 330(W)X400(D)X100(H)mm
- ② Carton : 430(W)X530(D)X200(H)mm
- ③ N.W : 5.1kg
- ④ G.W : 7.5kg
